One Cubic Millimetre

A first-person experience inside the MICrONS cubic millimetre of mouse visual cortex, the only piece of brain ever mapped down to every synapse. The real proofread skeletons of 1,711 neurons are rendered as glowing ribbons, and a leaky integrate-and-fire simulation runs on the GPU over 156,882 of their real synapses. Click a cell and stimulate it, watch the signal travel down its actual axon at conduction velocity, see which cells it fires, and ride the spike into the next one. Every spike is a synthesised sound placed in 3D.

Type
Side project
Status
Live
Stack
8 tools
Preview
Demo video

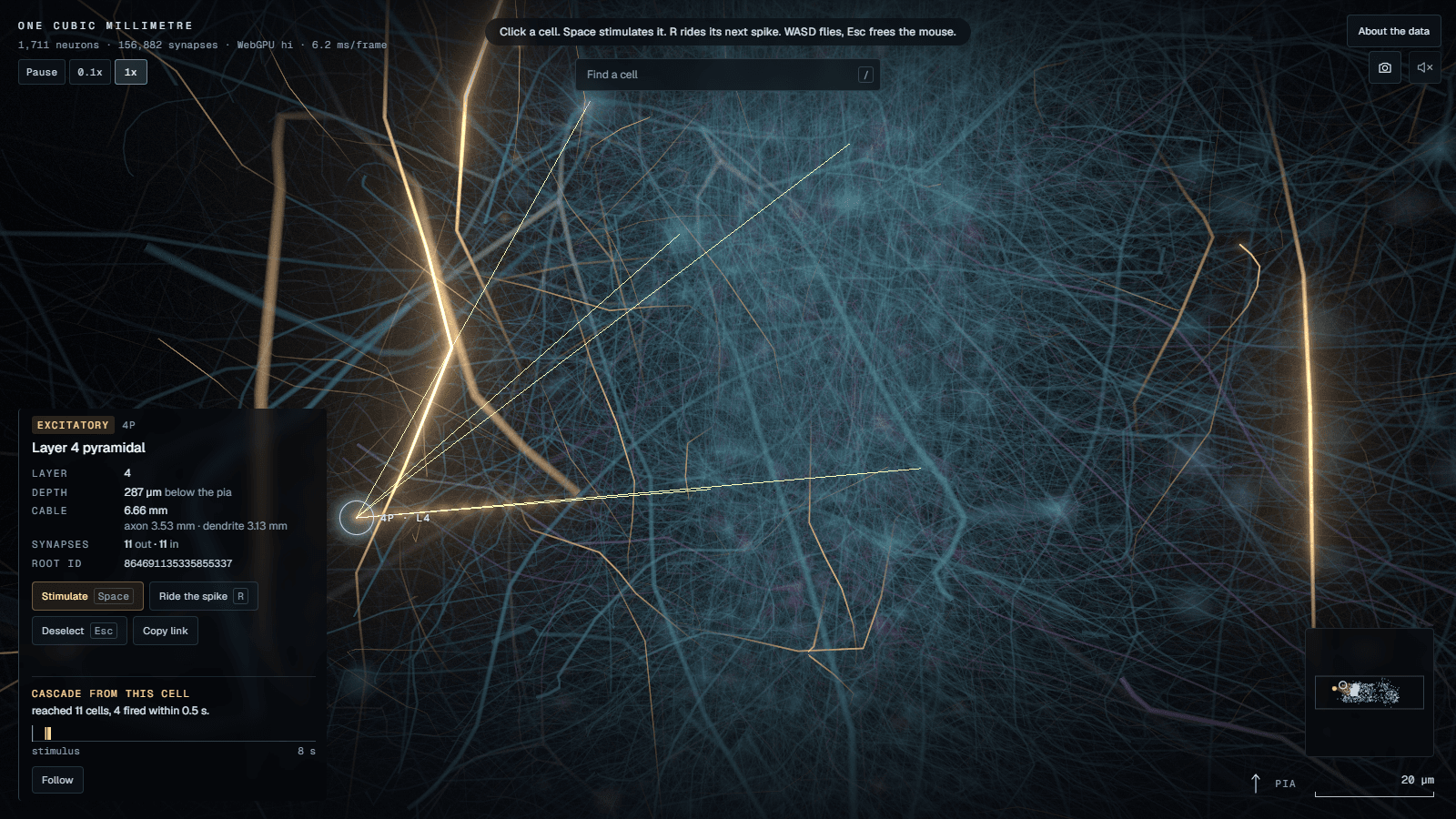

One Cubic Millimetre, screenshot
Demo video

Screens

01 captures

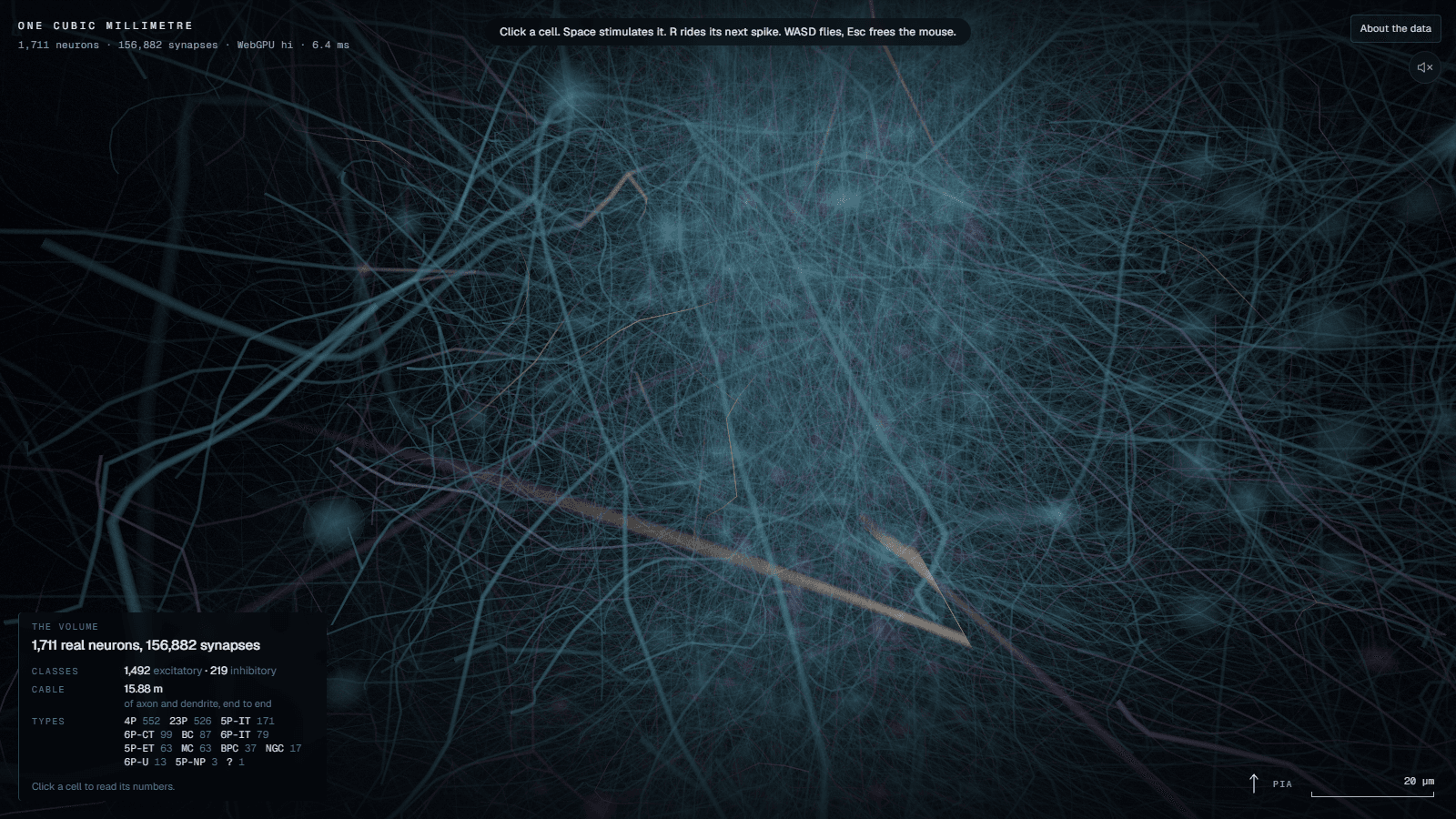

One Cubic Millimetre screen 1

Details

How it was built
  • three.js r186 on the WebGPU renderer with TSL compute kernels, and the same model in a Web Worker for browsers without WebGPU
  • A deterministic Python pipeline that streams the 20 GB synapse table once and packs 24 MB of browser-ready binary
  • Adaptive quality tiers, a scripted intro, shareable camera links, cell search, a minimap, time control and 3200 px screenshots
  • GPU and CPU paths proven to agree by a parity check in the smoke test; the data licence and the model's caveats are stated on the site

Stack

8 tools
  • TypeScript
  • three.js
  • WebGPU
  • TSL
  • Next.js
  • Python
  • Web Audio
  • Playwright
